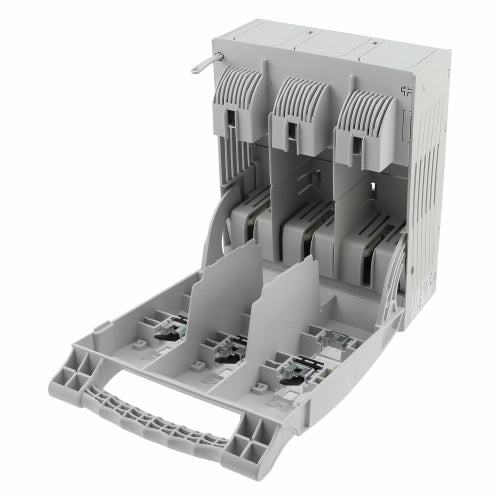

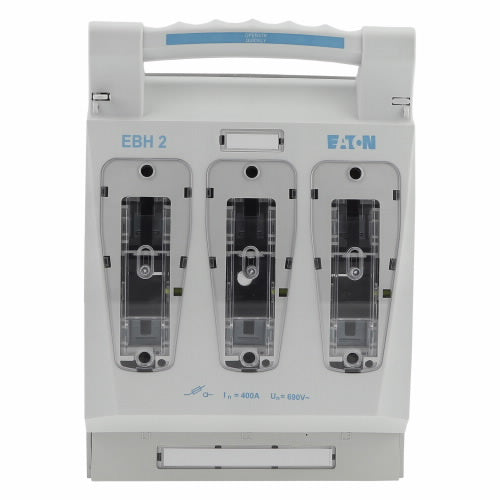

3P Horizontal Fuse Switch Disconnect (EBH Size 2, 690V AC)

Description: Specifically designed to be used with size 2 NH fuse links up to 400A. All energized metal parts are fully protected against accidental contact. These are manually operated switches and the making and breaking is dependent on the speed of the operation.

Voltage: 690V

Amperage: Up to 400A

Overall Height: 298mm

Overall Width: 208mm

Overall Depth: 130mm (Including closed handle)

Feature: Panel Mounted

Compatible Fuses: All NH2 Fuses (500V or 690V)

3P Horizontal Fuse Switch Disconnect Size 2 Datasheet
