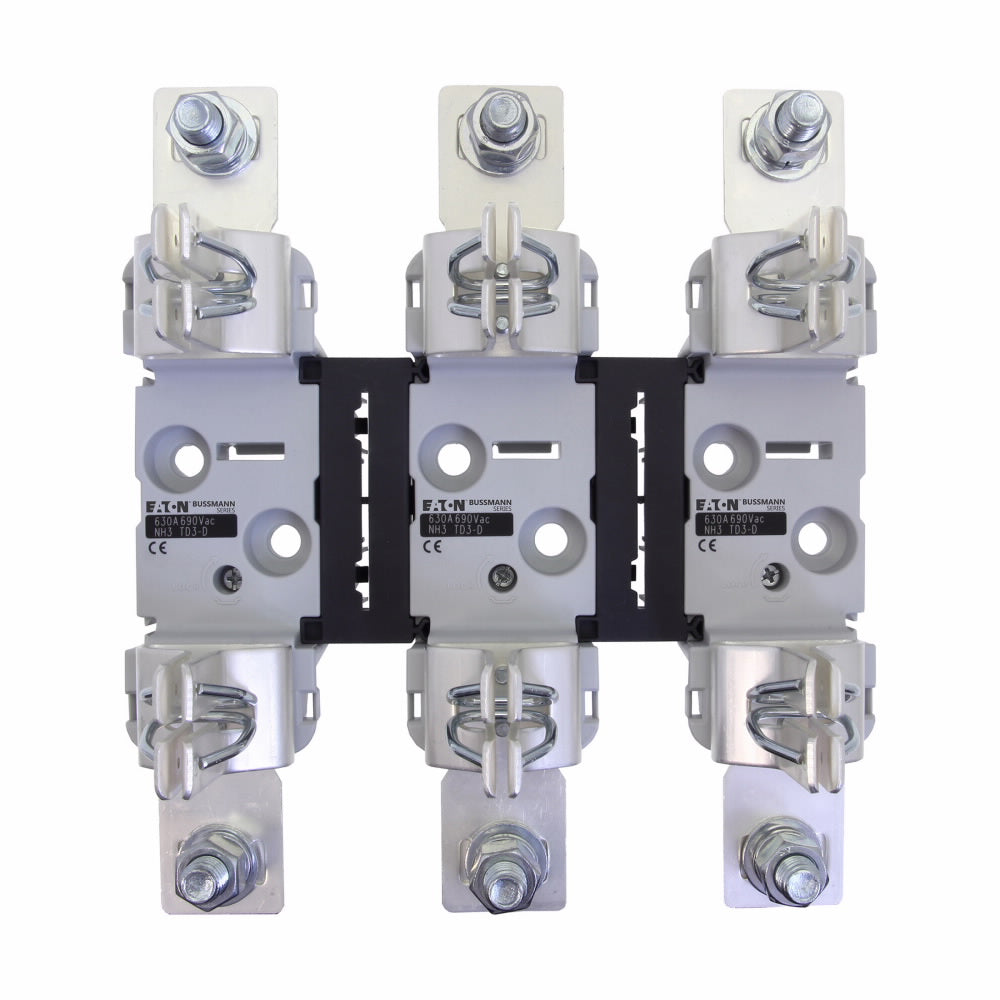

3P NH3 Fuse Base (TD3, 690V AC)

Description: Designed with thermoplastic bodies, with DIN-Rail and/or screw mounting (size 4 screw mounting only).

Voltage: 690V

Amperages: 630A (NH3)

Overall Length: 239mm (NH3)

Overall Width: 221mm (NH3)

Nomenclature:

- For Triple Pole NH Bases: TD(NH Size)-D

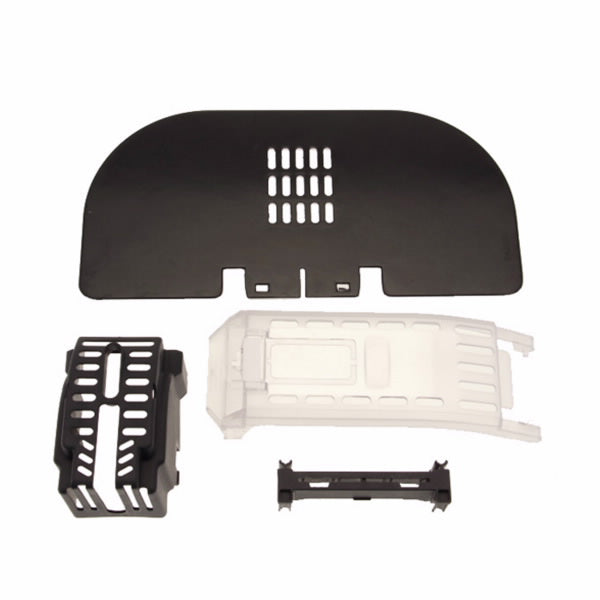

- For integral triple pole protection kit for TD00-DI with fuse covers and molded shrouds and phase barriers: TD(NH Size)-IP20IC

-  For triple pole protection kit for TD00-D with shrouds, fuse
covers and phase barriers: TD(NH Size)-IP20
