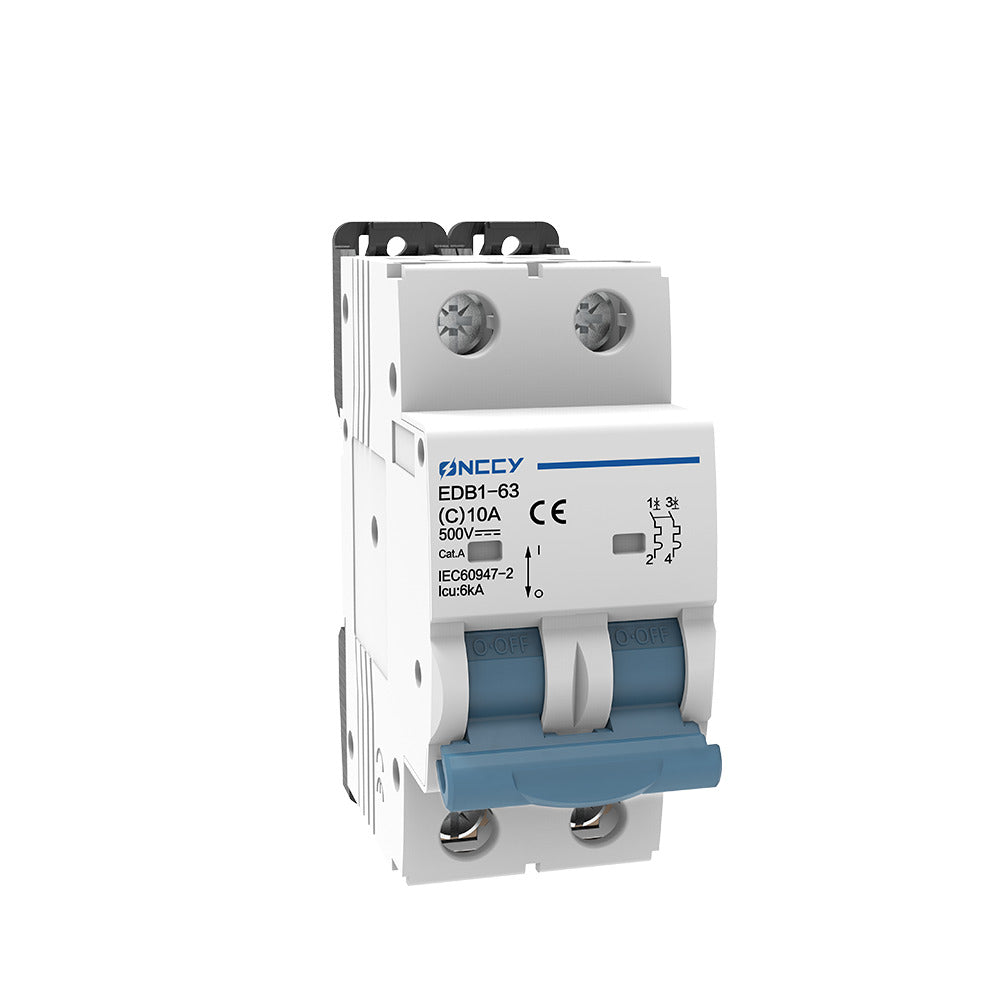

DC Miniture Circuit Breaker 2 Pole 20 Amp

EDB1-63 Series PV DC Isolator switches are used in PV solar power system, which are mainly used for DC solar combiner box and controllers. The Max voltage up to 1000V DC, current up to 63A

Comply with: IEC60947-3 GB/T 14048.3

Rated Working Voltage: 500V

Frame Current: 63A

Rated Current: 20A

Rated Insulation Voltage: 1000V

Rated Impulse Withstand Voltage: 6kV

Electrical Life: Actual: 2000 Cycles

                           :Standard: 1500 Cycles

Mechanical Life:  Actual: 20000 Cycles

                                :Standard: 8500 Cycles

Overvoltage Category:III

Pollution Degree: 3

Ingress Protection: IP40; Wiring port IP20

Resistance to humidity and heat: Class 2

Relative Humidity: ≤ 95 %

Vibration: acc. to IEC60068-2-6

Shocks: acc. to IEC60068-2-27

Terminal capacity: 2.5-25mm²

Fastening Torque of Terminals: 2 .5 N m

Ambient Temperature: -30°C~70°C

Storage Temperature: -40°C~85°C

Installation Method: DIN

Elevation: ≤2000m

Dimension: Width:18mm/Pole

                     :High: 92mm

                    :Depth: 74mm
